Configurationedit

Once the driver has been installed, in order for an application to be able to connect to Elasticsearch through ODBC, a set of configuration parameters must be provided to the driver. Depending on the application, there are generally three ways of providing these parameters:

  • through a connection string;
  • using a User DSN or System DSN;
  • through a File DSN.

DSN (data source name) is a generic name given to the set of parameters an ODBC driver needs to connect to a database.

We will refer to these parameters as connection parameters or DSN (despite some of these parameters configuring some other aspects of a driver’s functions; e.g. logging, buffer sizes…​).

Using a DSN is the most widely used, simplest and safest way of performing the driver configuration. Constructing a connection string, on the other hand, is the most crude way and consequently the least common method.

We will focus on DSN usage only.

1. Launching ODBC Data Source Administratoredit

For DSN management, ODBC provides the ODBC Data Source Administrator application, readily installed on all recent desktop Windows operating systems.

  • The 32-bit version of the Odbcad32.exe file is located in the %systemdrive%\Windows\SysWoW64 folder.
  • The 64-bit version of the Odbcad32.exe file is located in the %systemdrive%\Windows\System32 folder.

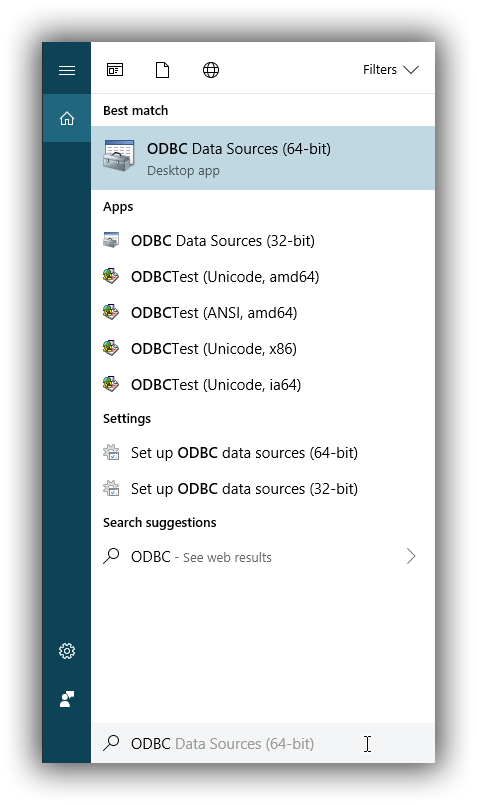

To launch it, open the search menu - Win + S - and type "ODBC Data Sources (64-bit)" or "ODBC Data Sources (32-bit)" and press Enter:

Launching ODBC Data Source Administratorlaunch administrator

Once launched, you can verify that the driver was installed correctly by clicking on the Drivers tab of the ODBC Data Source Administrator and checking that Elasticsearch Driver is present in the list of installed drivers.

You should also see the version number of the installed driver.

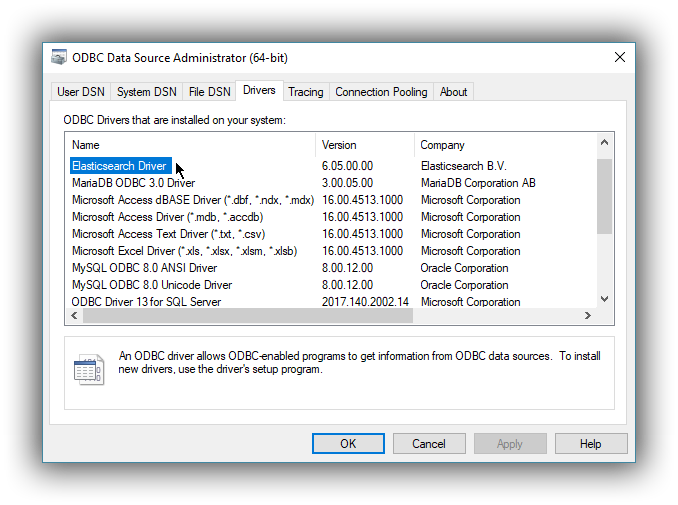

Drivers tabadministrator drivers

2. Configure a DSNedit

The next step is to configure a DSN. You can choose between the following options mapped on the first three tabs of the Administrator application:

  • User DSN

    The connections configured under this tab are only available to the currently logged in user. Each of these DSNs are referred to by a chosen arbitrary name (typically a host or cluster name).

    The actual set of parameters making up the DSN is stored through the driver in the system registry. Thus, a user will later only need to provide an application with the DSN name in order to connect to the configured Elasticsearch instance.

  • System DSN

    Similar to a User DSN, except that the connections configured under this tab will be available to all the users configured on the system.

  • File DSN

    This tab contains functionality that will allow to have one set of connection parameters written into a file, rather then the Registry.

    Such a file can be then shared among multiple systems and the user will need to specify the path to it, in order to have the application connect to the configured Elasticsearch instance.

The configuration steps are similar for all the above points. Following is an example of configuring a System DSN.

2.1 Launch Elasticsearch SQL ODBC Driver DSN Editoredit

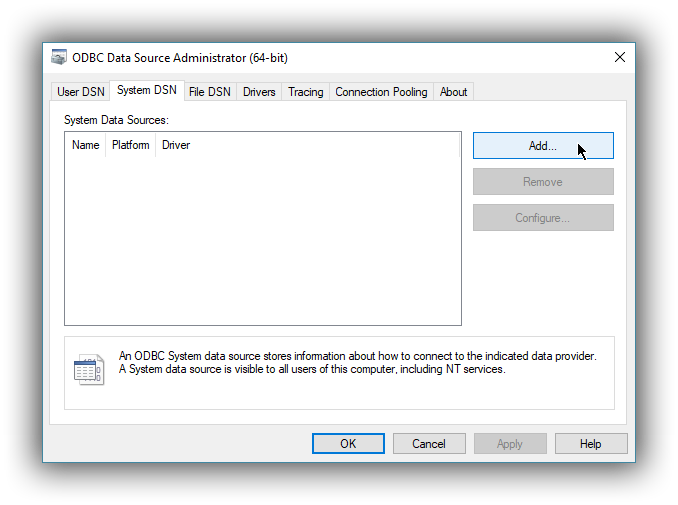

Click on the System DSN tab, then on the Add…​ button:

Add a new DSNadministrator system add

A new window will open, listing all available installed drivers. Click on Elasticsearch Driver, to highlight it, then on the Finish button:

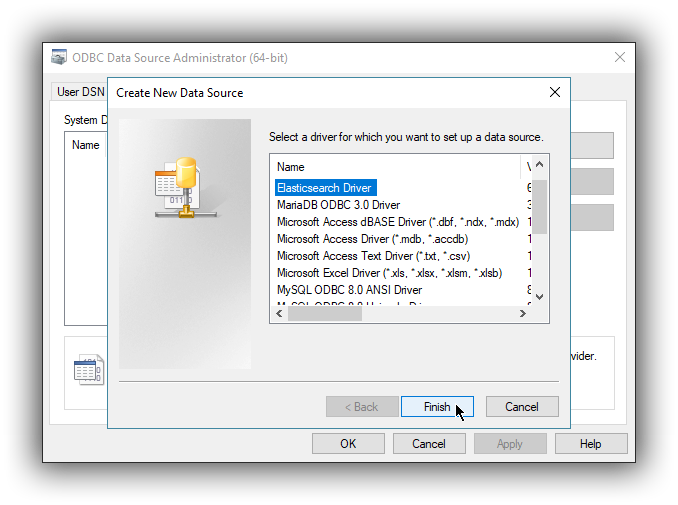

Launch the DSN Editoradministrator launch editor

This action closes the previously opened second window and open a new one instead, Elasticsearch SQL ODBC Driver’s DSN Editor:

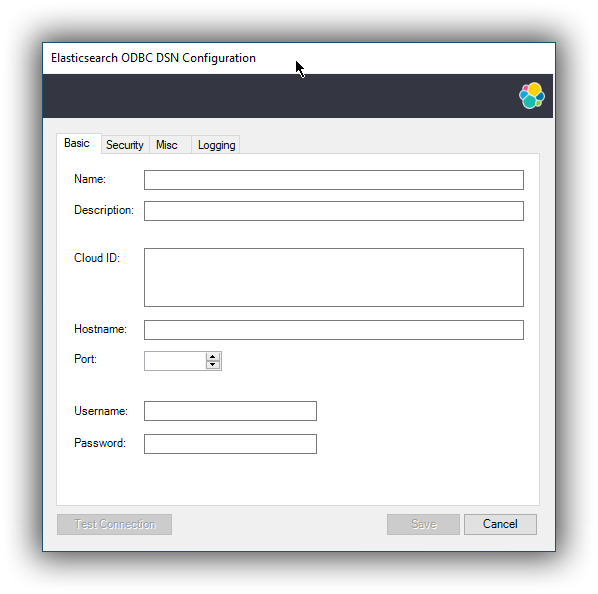

Elasticsearch SQL ODBC Driver DSN Editordsn editor basic

This new window has three tabs, each responsible for a set of configuration parameters, as follows.

2.2 Connection parametersedit

This tab allows configuration for the following items:

  • Name

    This is the name the DSN will be referred by.

    The characters available for this field are limited to the set permitted for a Registry key.

    Example: localhost

  • Description

    This field allows a arbitrary text; generally used for short notes about the configured connection.

    Example: Clear-text connection to the local [::1]:9200.

  • Cloud ID

    The Cloud ID is a string that simplifies the configuration when connecting to Elastic’s Cloud Elasticsearch Service; it is obtained from within the Cloud console of each Elasticsearch cluster and encodes the connection parameters to that cluster.

    When this field is provisioned, the Hostname, Port and the security settings are provisioned as well and their respective inputs disabled.

  • Hostname

    This field requires an IP address or a resolvable DNS name of the Elasticsearch instance that the driver will connect to.

    Example: ::1

  • Port

    The port on which the Elasticsearch listens on.

    If left empty, the default 9200 port number will be used.

  • Username, Password

    If security is enabled, these fields will need to contain the credentials of the access user.

At a minimum, the Name and Hostname fields must be provisioned, before the DSN can be saved.

Connection encryption is enabled by default. This will need to be changed if connecting to an Elasticsearch node with no encryption.

2.3 Cryptography parametersedit

One of the following SSL options can be chosen:

  • Disabled. All communications unencrypted.

    The communication between the driver and the Elasticsearch instance is performed over a clear-text connection.

    This setting can expose the access credentials to a 3rd party intercepting the network traffic and is not recommended.

  • Enabled. Certificate not validated.

    The connection encryption is enabled, but the certificate of the server is not validated.

    This is currently the default setting.

    This setting allows a 3rd party to act with ease as a man-in-the-middle and thus intercept all communications.

  • Enabled. Certificate is validated; hostname not validated.

    The connection encryption is enabled and the driver verifies that server’s certificate is valid, but it does not verify if the certificate is running on the server it was meant for.

    This setting allows a 3rd party that had access to server’s certificate to act as a man-in-the-middle and thus intercept all the communications.

  • Enabled. Certificate is validated; hostname validated.

    The connection encryption is enabled and the driver verifies that both the certificate is valid, as well as that it is being deployed on the server that the certificate was meant for.

  • Enabled. Certificate identity chain validated.

    This setting is equivalent to the previous one, with one additional check against certificate’s revocation. This offers the strongest security option and is the recommended setting for production deployments.

  • Certificate File

    In case the server uses a certificate that is not part of the PKI, for example using a self-signed certificate, you can configure the path to a X.509 certificate file that will be used by the driver to validate server’s offered certificate.

    The driver will only read the contents of the file just before a connection is attempted. See 2.5 Testing the connection section further on how to check the validity of the provided parameters.

    The certificate file can not be bundled or password protected since the driver will not prompt for a password.

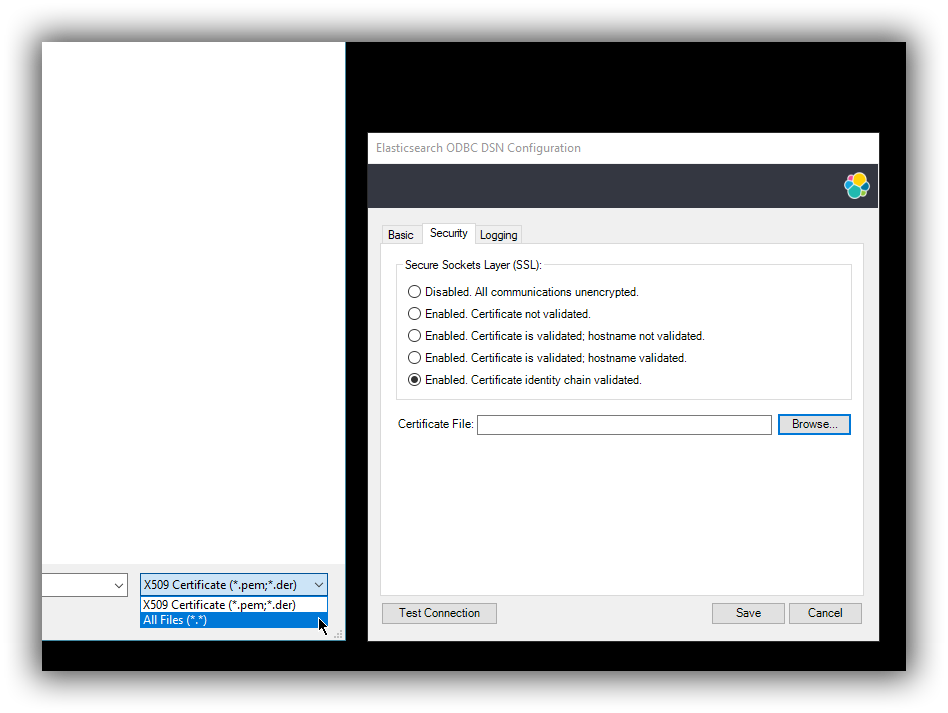

    If using the file browser to locate the certificate - by pressing the Browse…​ button - only files with .pem and .der extensions will be considered by default. Choose All Files (*.*) from the drop down, if your file ends with a different extension:

    Certificate file browserdsn editor security cert

2.4 Connection parametersedit

The connection configuration can further be tweaked by the following parameters.

  • Request timeout (s)

    The maximum number of seconds for a request to the server. The value 0 disables the timeout. This corresponds to the Timeout setting in Connection string parameters.

  • Max page size (rows)

    The maximum number of rows that Elasticsearch SQL server should send the driver for one page. This corresponds to the MaxFetchSize setting in Connection string parameters.

  • Max page length (MB)

    The maximum number of megabytes that the driver will accept for one page. This corresponds to the MaxBodySizeMB setting in Connection string parameters.

  • Floats format

    How should the floating point numbers be printed, when these are converted to string by the driver. This corresponds to the ScientificFloats setting in Connection string parameters.

  • Data encoding

    How should the data between the server and the driver be encoded as. This corresponds to the Packing setting in Connection string parameters.

  • Data compression

    Should the data between the server and the driver be compressed? This corresponds to the Compression setting in Connection string parameters.

  • Follow HTTP redirects?

    Should the driver follow HTTP redirects of the requests to the server? This corresponds to the Follow setting in Connection string parameters.

  • Use local timezone?

    Should the driver use machine’s local timezone? The default is UTC. This corresponds to the ApplyTZ setting in Connection string parameters.

  • Auto-escape PVAs?

    Should the driver auto-escape the pattern-value arguments? This corresponds to the AutoEscapePVA setting in Connection string parameters.

  • Multi value field lenient?

    Should the server return one value out of a multi-value field (instead of rejecting the request)? This corresponds to the MultiFieldLenient setting in Connection string parameters.

  • Include frozen indices?

    Should the server consider the frozen indices when servicing a request? This corresponds to the IndexIncludeFrozen setting in Connection string parameters.

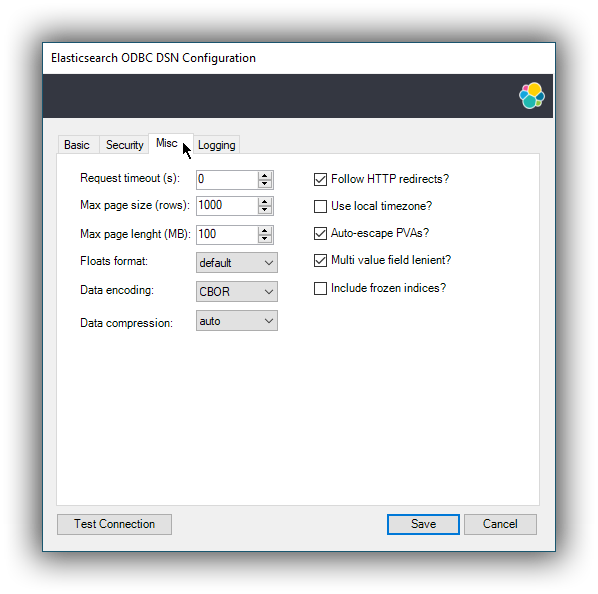

Connection parametersdsn editor misc

2.5 Logging parametersedit

For troubleshooting purposes, the Elasticsearch SQL ODBC Driver offers functionality to log the API calls that an application makes; this is enabled in the Administrator application:

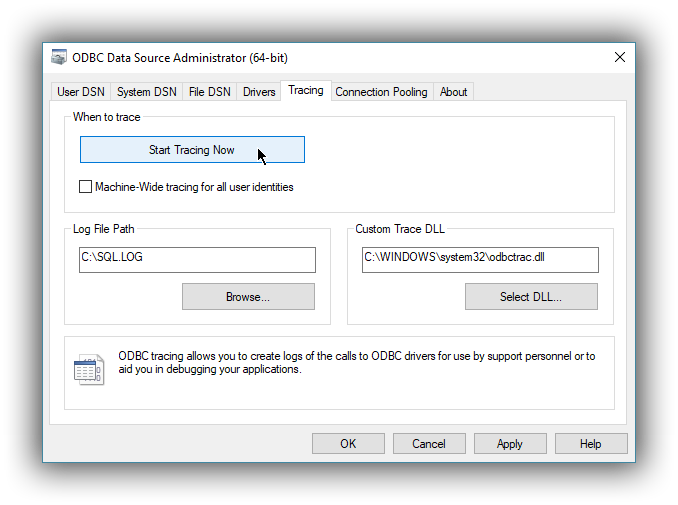

Enable Application ODBC API loggingadministrator tracing

However, this only logs the ODBC API calls made by the application into the Driver Manager and not those made by the Driver Manager into the driver itself. To enable logging of the calls that the driver receives, as well as internal driver processing events, you can enable driver’s logging on Editor’s Logging tab:

  • Enable Logging?

    Ticking this will enable driver’s logging. A logging directory is also mandatory when this option is enabled (see the next option). However the specified logging directory will be saved in the DSN if provided, even if logging is disabled.

  • Log Directory

    Here is to specify which directory to write the log files in.

    The driver will create one log file per connection, for those connections that generate logging messages.

  • Log Level

    Configure the verbosity of the logs.

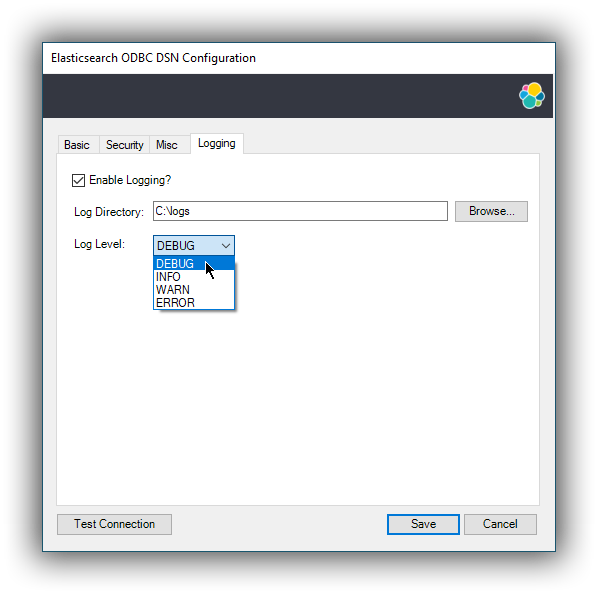

    Enable driver loggingdsn editor logging

    When authentication is enabled, the password will be redacted from the logs.

Debug-logging can quickly lead to the creation of many very large files and generate significant processing overhead. Only enable if instructed so and preferably only when fetching low volumes of data.

2.5 Testing the connectionedit

Once the Hostname, the Port (if different from implicit default) and the SSL options are configured, you can test if the provided parameters are correct by pressing the Test Connection button. This will instruct the driver to connect to the Elasticsearch instance and perform a simple SQL test query. (This will thus require a running Elasticsearch instance with the SQL plugin enabled.)

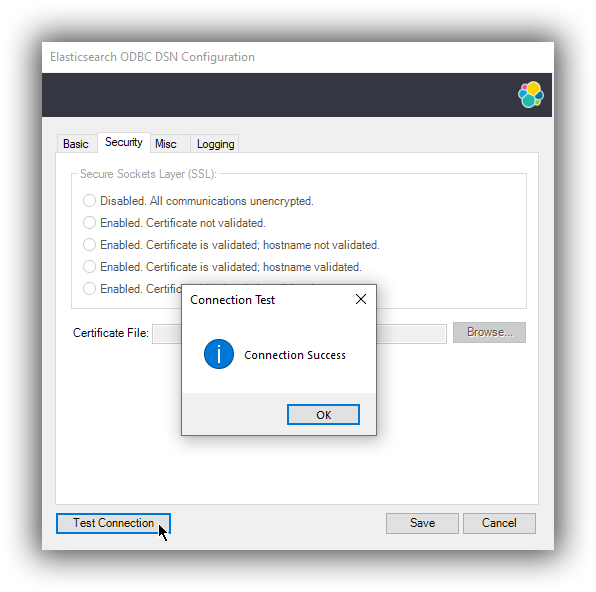

Connection testingdsn editor conntest

When connection testing, all the configured parameters are taken into account, including the logging configuration. This will allow early detection of potential file/directory access rights conflicts.

See Alternative logging configuration section further for an alternative way of configuring the logging.

3. DSN is availableedit

Once everything is in place, pressing the Save button will store the configuration into the chosen destination (Registry or file).

Before saving a DSN configuration the provided file/directory paths are verified to be valid on the current system. The DSN editor will however not verify in any way the validity or reachability of the configured Hostname : Port. See 2.5 Testing the connection for an exhaustive check.

If everything is correct, the name of the newly created DSN will be listed as available to use:

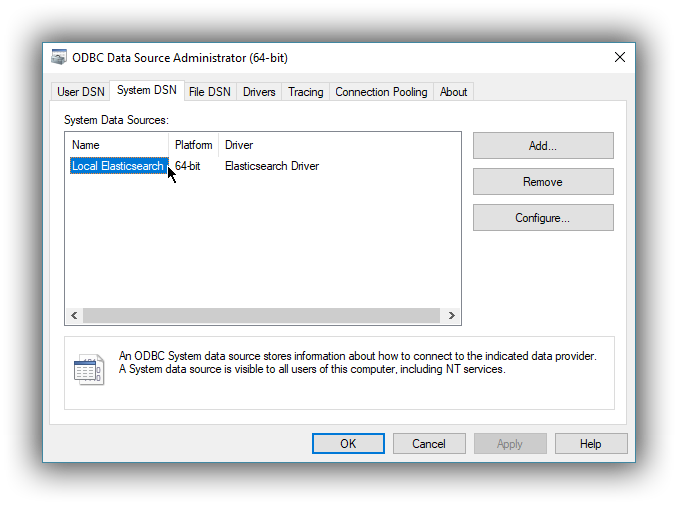

Connection addedadministrator system added

Alternative logging configurationedit

Due to the specification of the ODBC API, the driver will receive the configured DSN parameters - including the logging ones - only once a connection API is invoked (such as SQLConnect or SQLDriverConnect). The Driver Manager will however always make a set of API calls into the driver before attempting to establish a connection. To capture those calls as well, one needs to pass logging configuration parameters in an alternative way. The Elasticsearch SQL ODBC Driver will use an environment variable for this purpose.

Configuring an environment variable is OS specific and not detailed in this guide. Whether the variable should be configured system-wide or user-specific depends on the way the ODBC-enabled application is being run and if logging should affect the current user only or not.

The definition of the environment variable needs to be done as follows:

  • Name: ESODBC_LOG_DIR

  • Value: [path](?[level]), where:

    [path] is the path to the directory where the log files will be written into;

    [level] is optional and can take one of the following values: debug, info, warn, error; if not provided, debug is assumed.

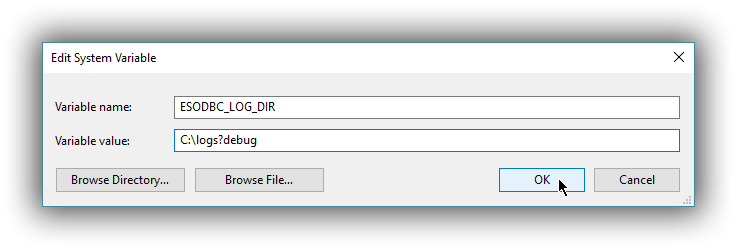

Logging environment variableenv var log

When enabling the logging through the environment variable, the driver will create one log file per process.

Both ways of configuring the logging can coexist and both can use the same destination logging directory. However, one logging message will only be logged once, the connection logging taking precedence over the environment variable logging.

Connection string parametersedit

The following is a list of additional parameters that can be configured for a particular connection, in case the default behavior of the driver is not suitable. For earlier versions of the driver, this needs to be done within the client application, in a manner particular to that application, generally in a free text input box (sometimes named "Connection string", "String extras", or similar). The format of the string is Attribute1=Value1. Multiple attributes can be specified, separated by a semicolon Attribute1=Value1;Attribute2=Value2;. The attribute names are given below.

Timeout (default: 0)
The maximum time (in seconds) a request to the server can take. This can be overridden by a larger statement-level timeout setting. The value 0 means no timeout.
Follow (default: yes)
A boolean value (yes|no / true|false / 0|1) controlling if the driver will follow HTTP redirects.
Packing (default: CBOR)

This value controls which data format to encode the REST content in. Possible values are:

  • CBOR: use the Concise Binary Object Representation format. This is the preferred encoding, given its more compact format.
  • JSON: use the JavaScript Object Notation format. This format is more verbose, but easier to read, useful in debugging cases.
Compression (default: auto)

This value controls if and when the REST content - encoded in one of the above formats - is going to be compressed. The possible values are:

  • on: enables the compression;
  • off: disables the compression;
  • auto: enables the compression, except for the case when the data flows through a secure connection; since in this case the encryption layer employs its own data compression and there can be security implications when an additional compression is enabled, the setting should be kept to this value.
MaxFetchSize (default: 0)
The maximum number of rows that Elasticsearch SQL server should send the driver for one page. This corresponds to Elasticsearch SQL’s request parameter fetch_size (see Supported REST parameters). The value 0 means server default.
MaxBodySizeMB (default: 100)
The maximum size (in megabytes) that an answer can grow to, before being rejected as too large by the driver. This is concerning the HTTP answer body of one page, not the cumulated data volume that a query might generate.
ApplyTZ (default: no)

A boolean value controlling the timezone of:

  • the context in which the query will execute (especially relevant for functions dealing with timestamp components);
  • the timestamps received from / sent to the server. If disabled, the UTC timezone will apply; otherwise, the local machine’s set timezone.
ScientificFloats (default: default)

Controls how the floating point numbers will be printed, when these are converted to string by the driver. Possible values given to this parameter:

  • scientific: the exponential notation (ex.: 1.23E01);
  • default: the default notation (ex.: 12.3);
  • auto: the driver will choose one of the above depending on the value to be printed. Note that the number of decimals is dependent on the precision (or ODBC scale) of the value being printed and varies with the different floating point types supported by Elasticsearch SQL. This setting is not effective when the application fetches from the driver the values as numbers and then does the conversion subsequently itself.
VersionChecking (default: strict)

By default, the version of the driver and that of the server must be the same. This parameter will allow a driver to connect to a server of different version. The variation however can only be of the minor version, both endpoints must be of same major version number. Possible values:

  • strict: the versions must be in sync;
  • major: the versions must have the same major number.

This parameter can only be used for troubleshooting purposes. Running with versions out of sync is not supported.

MultiFieldLenient (default: true)
This boolean parameter controls the behavior of the server in case a multi-value field is queried. In case this is set and the server encounters such a field, it will pick a value in the set - without any guarantees of what that will be, but typically the first in natural ascending order - and return it as the value for the column. If not set, the server will return an error. This corresponds to Elasticsearch SQL’s request parameter field_multi_value_leniency (see Supported REST parameters).
AutoEscapePVA (default: true)
The pattern-value arguments make use of _ and % as special characters to build patern matching values. Some applications however use these chars as regular ones, which can lead to Elasticsearch SQL returning more data than the app intended. With the auto escaping, the driver will inspect the arguments and will escape these special characters if not already done by the application.
IndexIncludeFrozen (default: false)
If this parameter is true, the server will include the frozen indices in the query execution. This corresponds to Elasticsearch SQL’s request parameter index_include_frozen (see Supported REST parameters).
